Reducer Street Elbows 90° (FIG NO. 92R) - TSP BRAND SNI 0139 / JIS

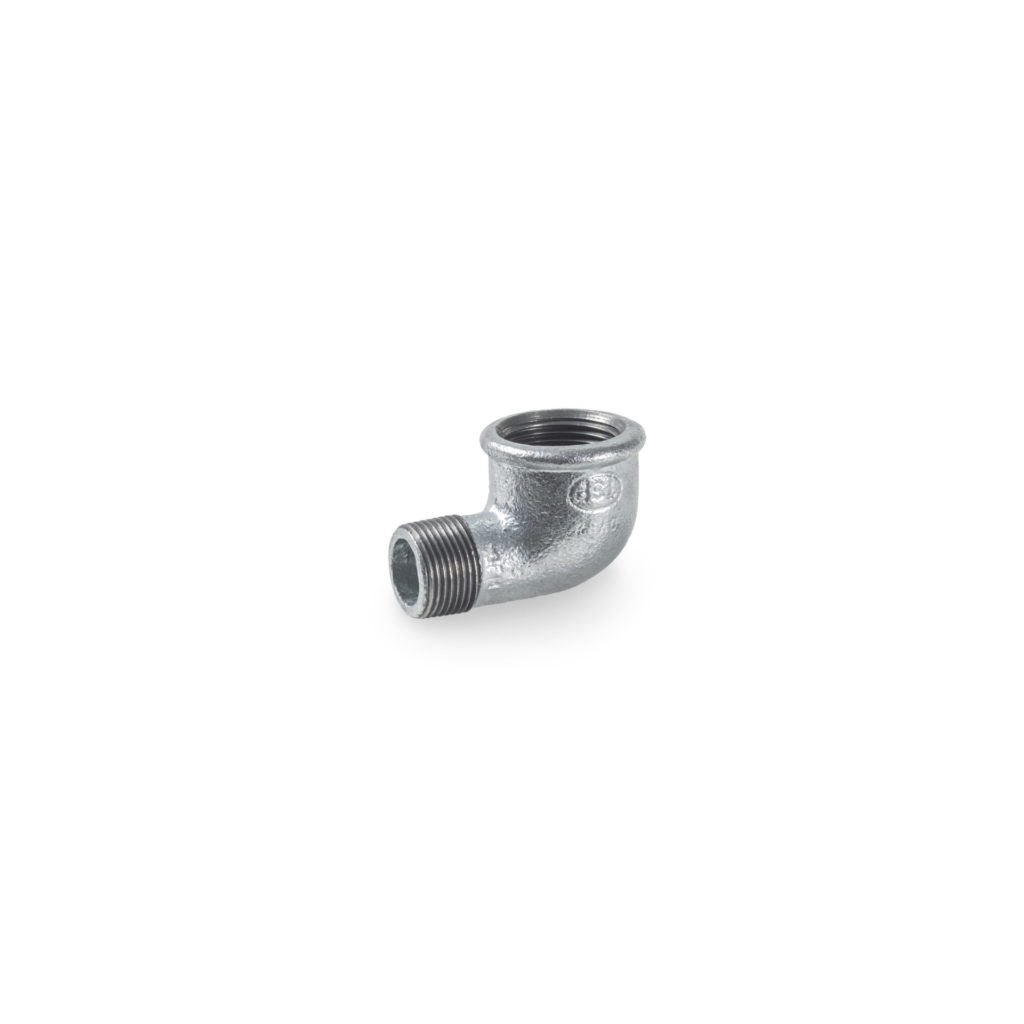

Reducer Street Elbows 90° (FIG NO. 92R)

Overview

Reducer Street Elbow Malleable Iron Pipe Fitting Standard dengan spesifikasi sebagai berikut :


– Size : (1/4″ – 2″) X (3/8″ – 1″)

– Design: SNI 0139 / JIS B 2301

– Material: SNI 0139

– Threads: ISO 7-1

– Zinc Coating: SNI 0139 / JIS B 2301

– Reinforcement: Banded, Plain

Dimension of Class 150 – (in Inch)
SIZEAB
(min)
E
(min)
F
(min)
F
(max)
GH
(min)
1/4″0.810.320.210.540.580.090.84
3/8″0.950.360.230.670.720.101.01
1/2″1.120.430.250.840.900.101.20
